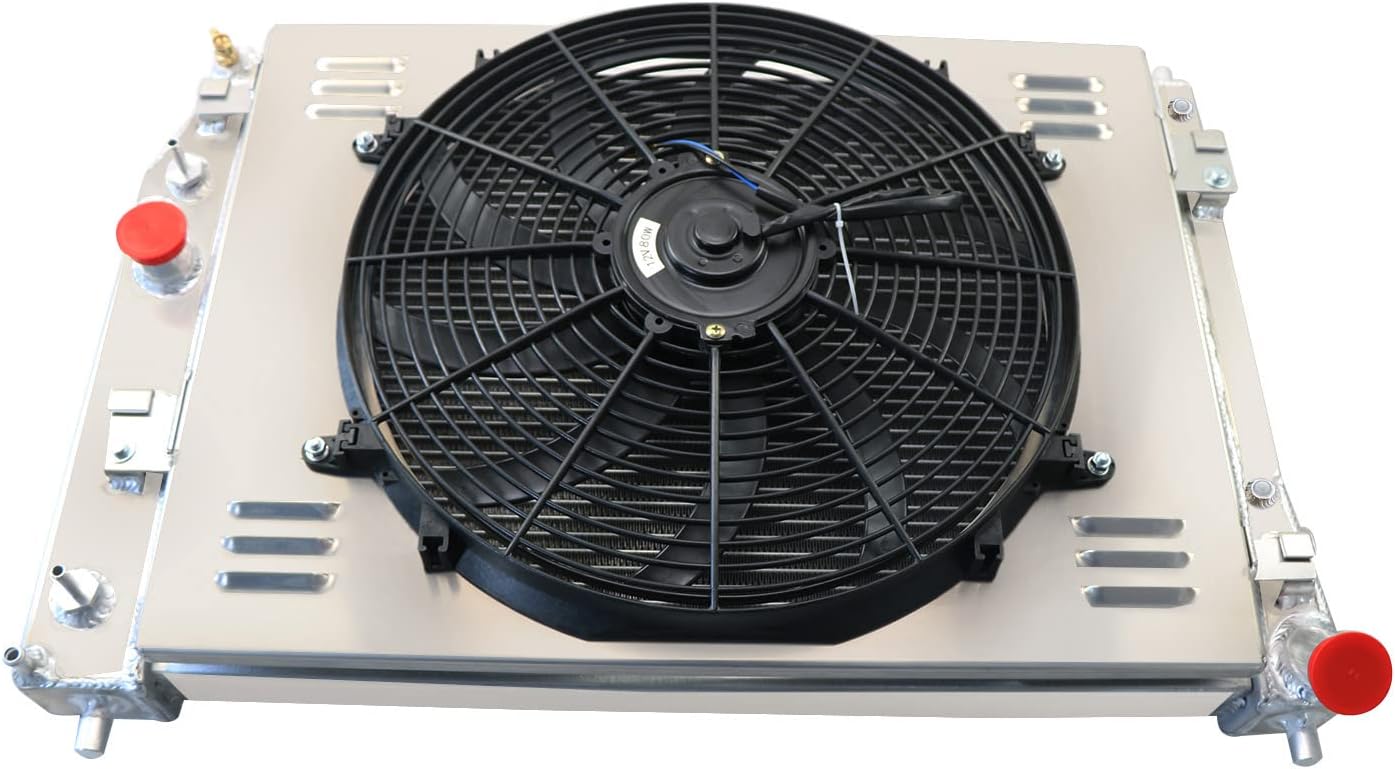

4 Row Radiator Shroud 16'' Fan for Chevy Corvette V8 GAS 2003-2013 H545130

Vehicle Fitment

For Chevy Corvette 6.0L V8 GAS 2006-2007

For Chevy Corvette 6.2L V8 GAS 2008-2013

For Chevy Corvette 7.0L V8 GAS 2013

For Chevy SSR 5.3L V8 GAS 2003-2004

For Chevy SSR 6.0L V8 GAS 2005-2006

For Saab 9-7x 5.3L V8 GAS 2008-2009

For Saab 9-7x 6.0L V8 GAS 2008-2009

Manufacturer Part Number: CU2714, RAD2714, DPI2714, KKS2714, SBR2714

Interchange Part Number: 21996495 21559 GM3010510 1886 CU2714 8163

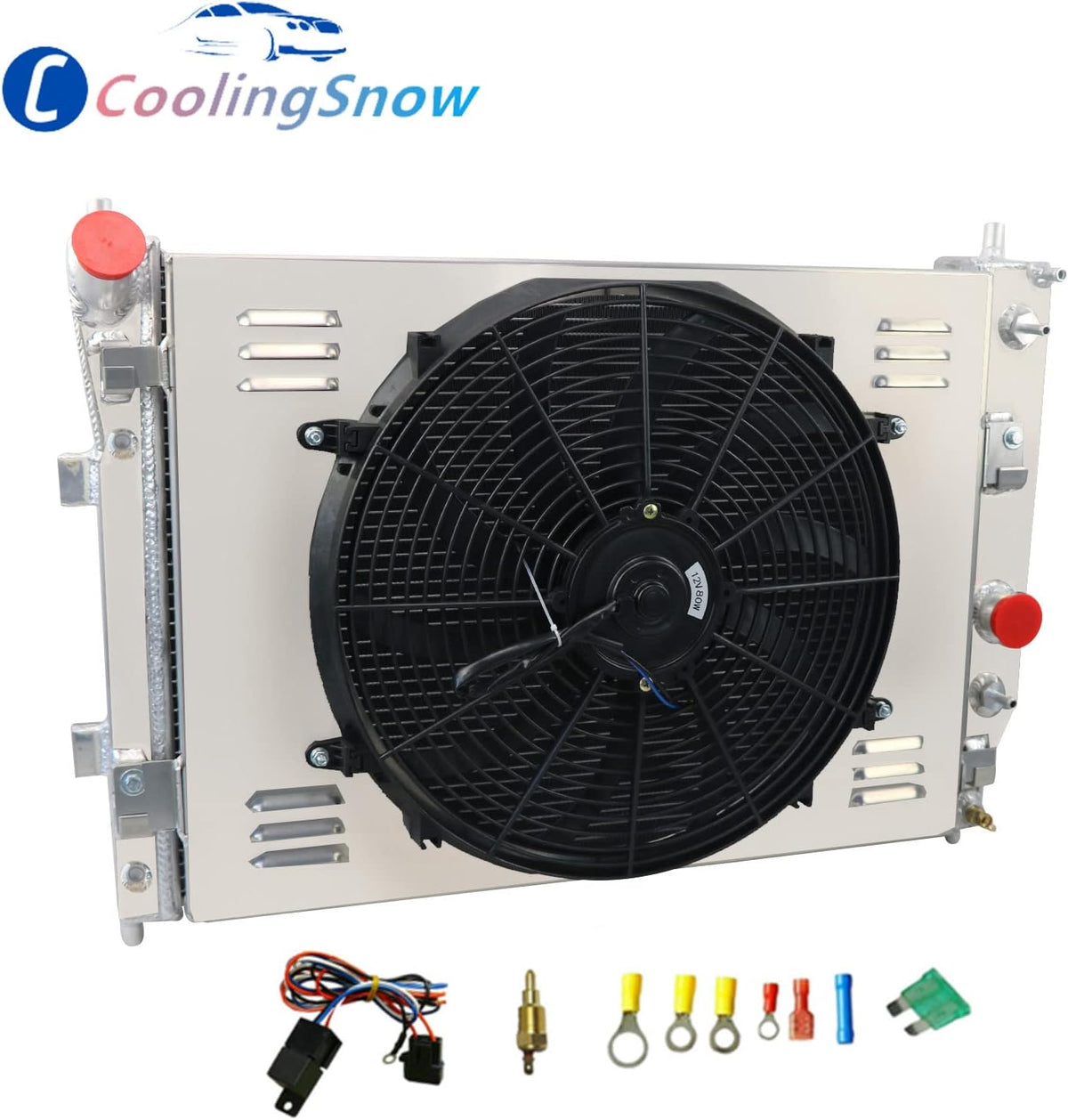

Package Included:

1 X 1 Row Aluminum Radiator (including oil cooler fittings/adapters & radiator cap)

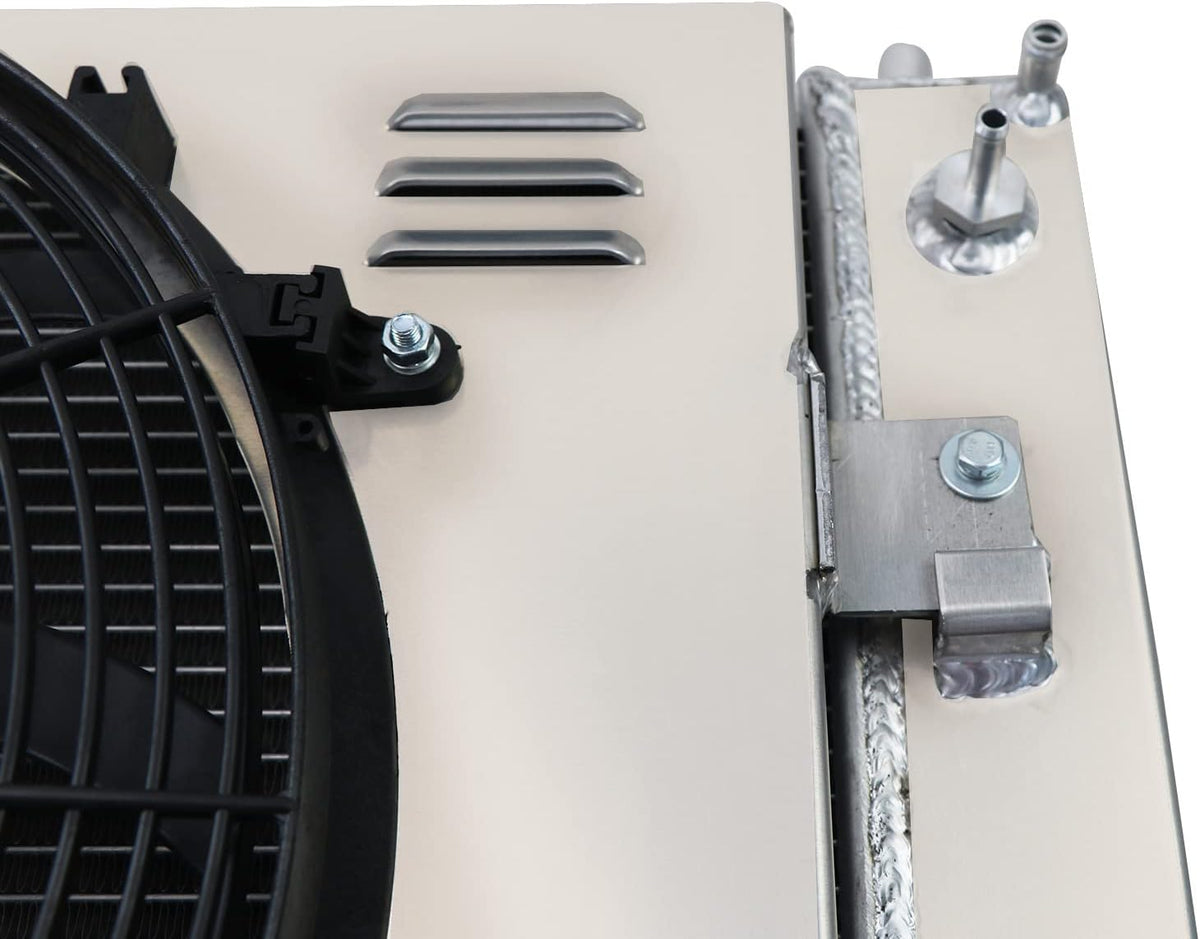

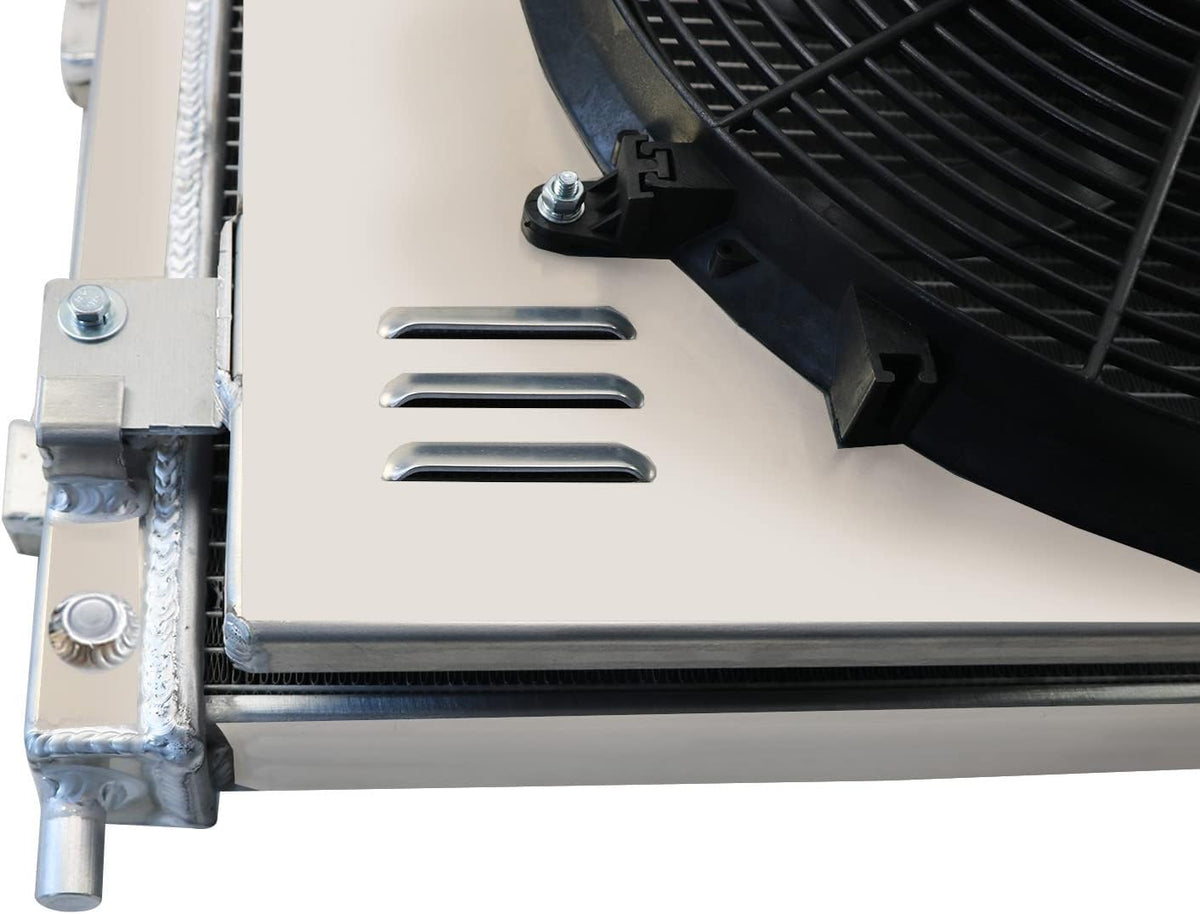

1 X Aluminum Shroud

1 X 16"Fans (Includes mounting kits)

1 X Thermostat Relay Kit

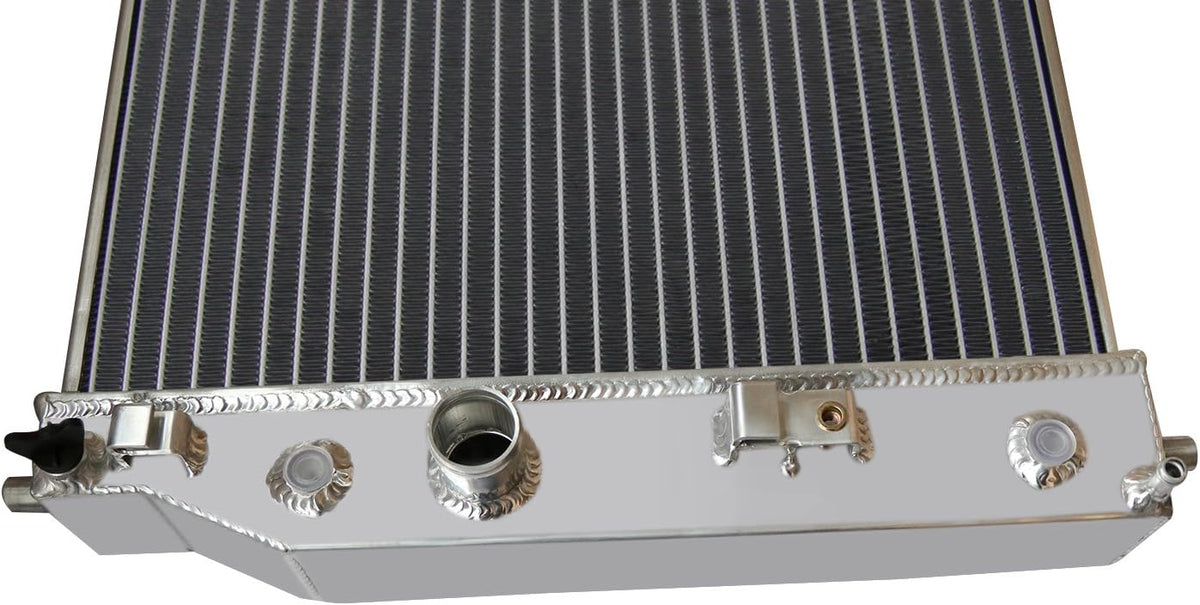

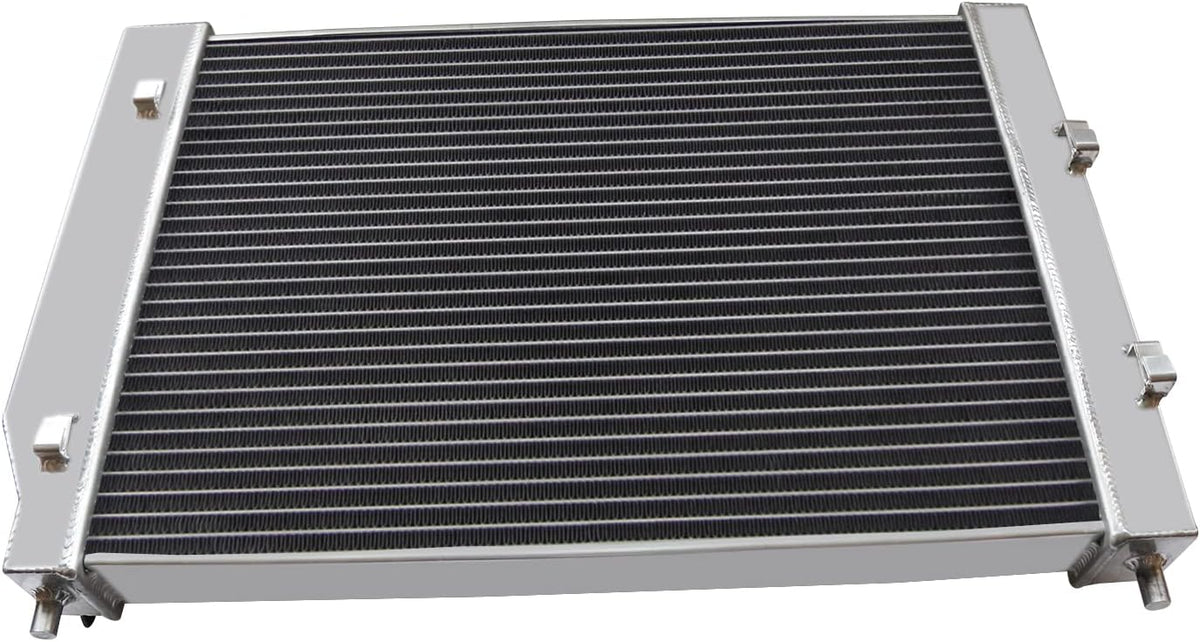

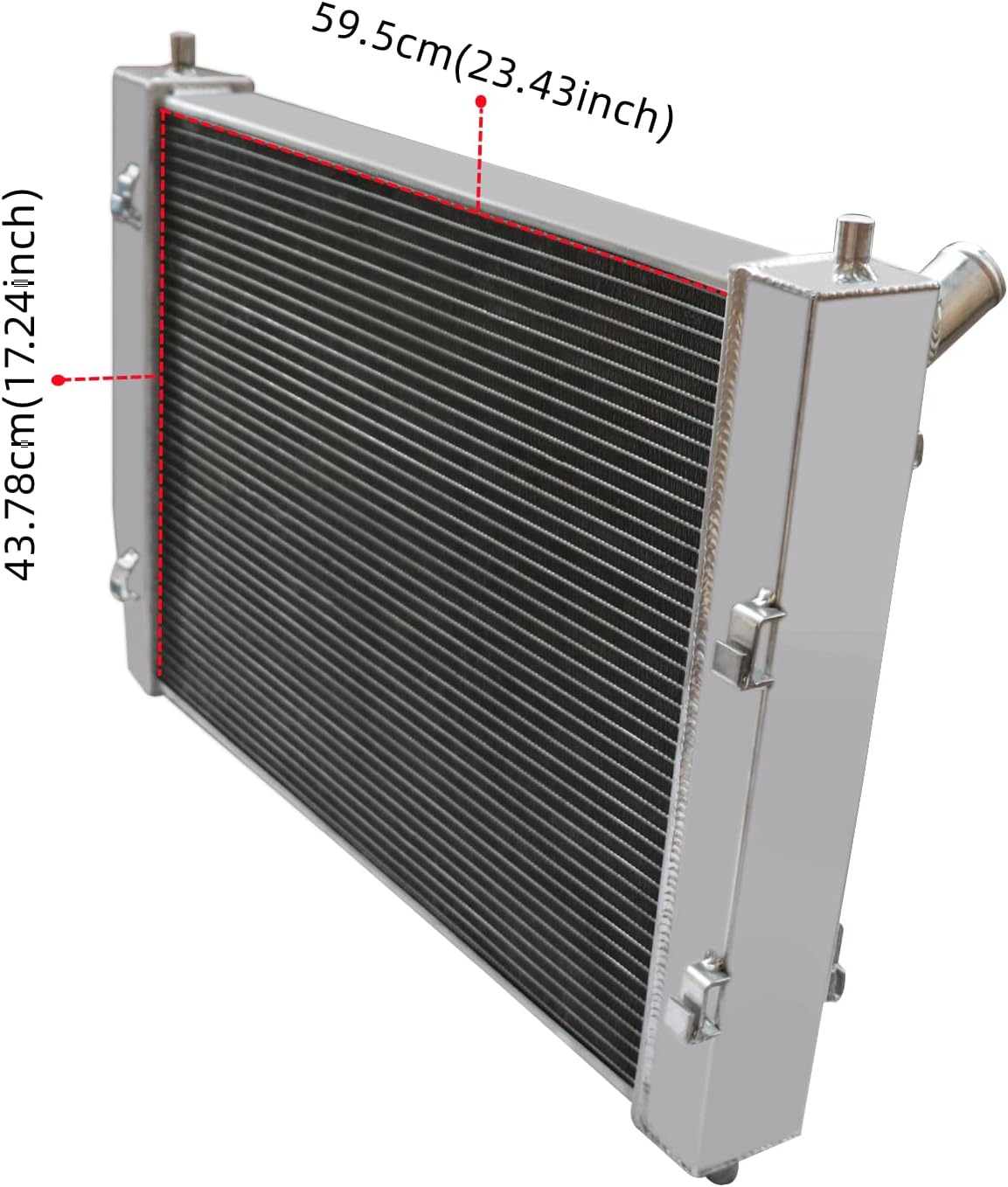

Radiator Details

Core Row: 4 Row

Core Material: Full Aluminum

Tank Material: Full Aluminum

100% welded seams by TIG

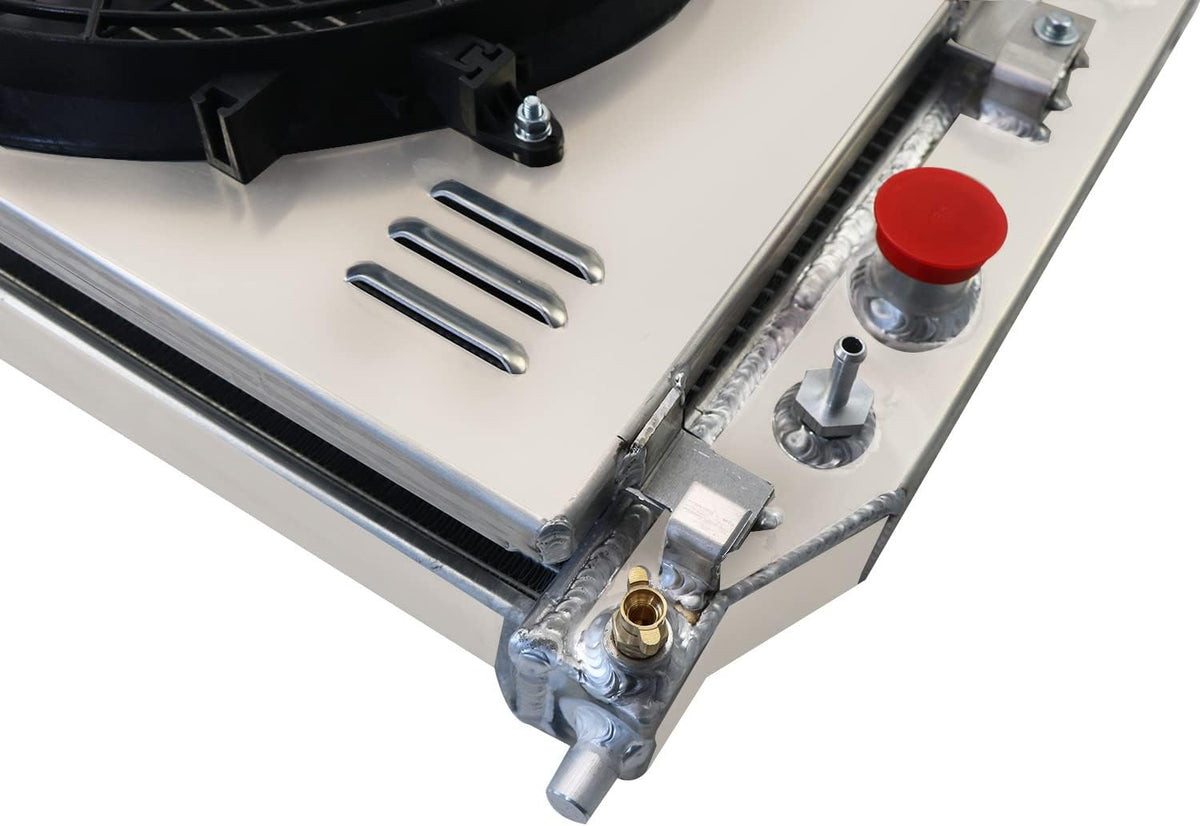

OEM Style Brass Petcock Drain

CNC machined filler neck and cap

High Performance Racing Spec

Fan Specification

Fan Diameter (in): 16.050 inches

Thickness (in): 2.790 inches

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Relay kit Instructions:

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

This set up will run Fans & pull air in through radiator.
