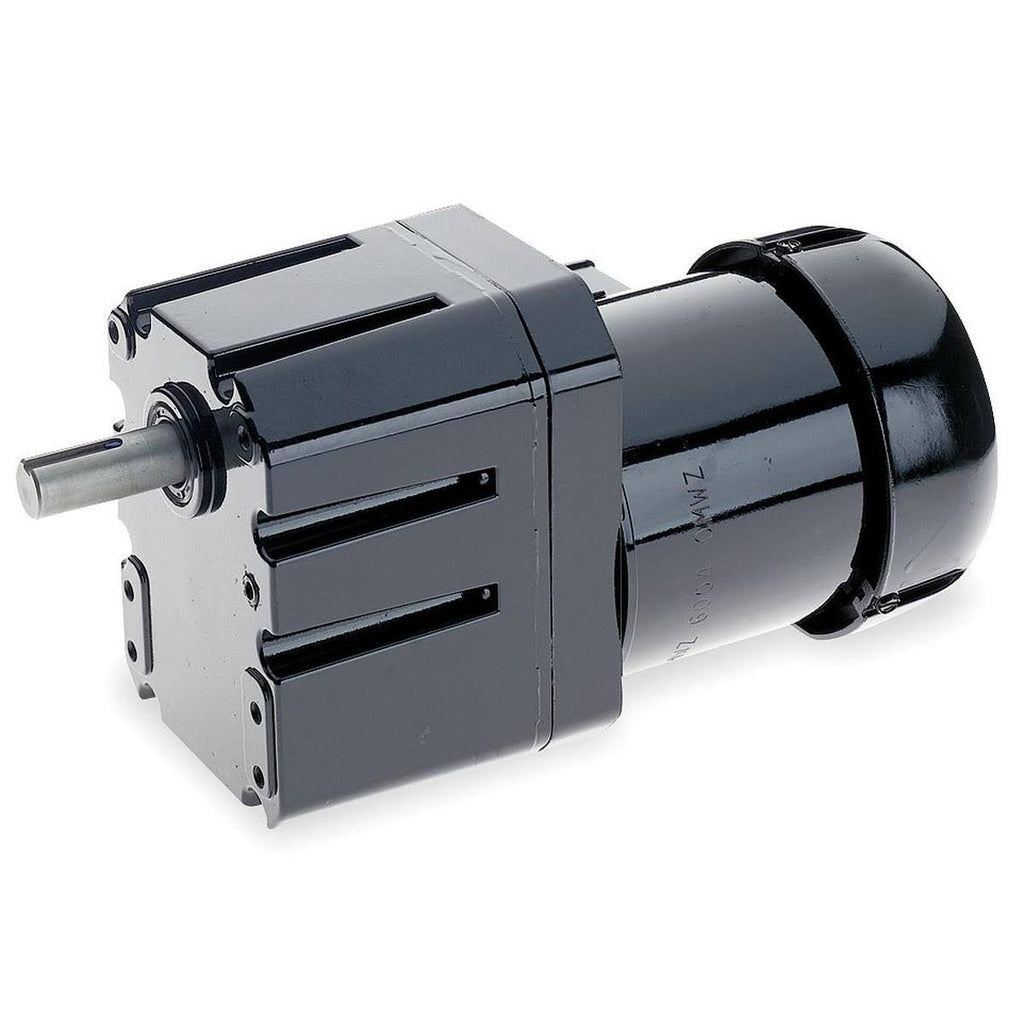

AC Gearmotor, 14 RPM, TEFC, 115/230V I760463
Sale price
$29.95
Regular price $123.92
Skip to product information
Steel Gear Material; None Thermal Protection; 0.75 in Shaft Diameter; 900 lb Overhung Load; Single Phase; Needle Throughout with Thrust Balls on Case Bearings; Ball on Motor Bearings; Totally Enclosed Fan-Cooled NEMA Enclosure Type; Adaptable to 5X400 Brake; Yes Capacitor Included; 1.1 A Current; Die Cast Aluminum Enclosure Material; 50 Hz Frequency; 60 Hz Frequency; 630 in-lb Full-Load Torque; Die Cast Aluminum Gear Case Material; 116:1 Gear Ratio; Helical/Spur Gear Type; 0.166667 hp Input Power; Permanent Heavy Fluid Gear Oil Lubrication; 15 RPM Maximum Speed; All Angle Mounting Position; Thru-Bolt Mounting Style; 14 RPM Nameplate RPM; Keyed Shaft Design; 2 in Shaft Length; CW/CCW Shaft Rotation; 115V AC Voltage; 230V AC Voltage; 40 ° C Maximum Ambient Temperature; Spring Loaded Lip Type on Input and Output Shaft Seals; 11.625 in Body Length; 2.1 A Current; USA Country of Origin; AC Power Type; Face Mounting Location; Split Phase Motor Type; 0 RPM Minimum Speed
AC Gearmotor, 14 RPM, TEFC, 115/230V I760463
Sale price
$29.95
Regular price $123.92
Shipping calculated at checkout.
